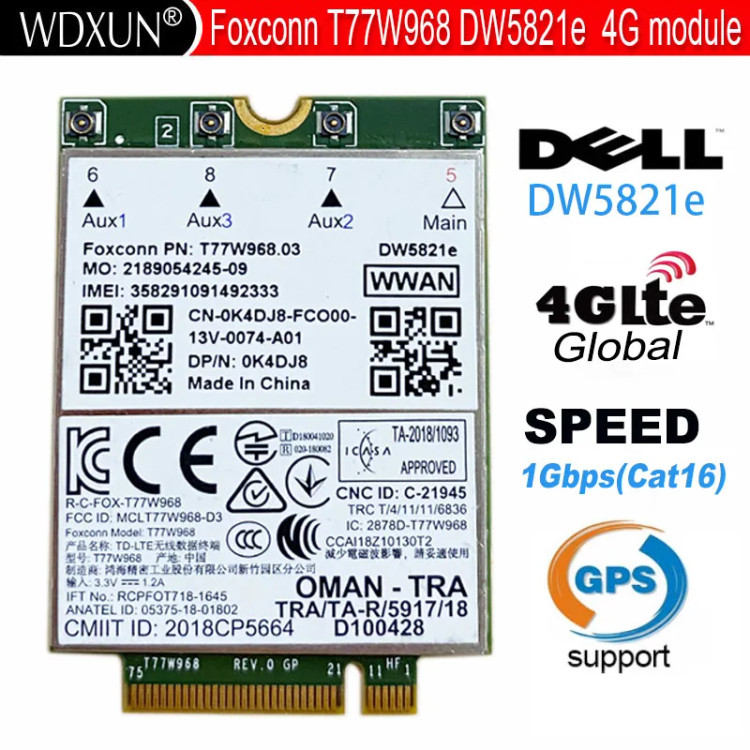

ماژول سیم کارت لپ تاپ مدل Dell DW5821e T77W968 LTE Cat16 GNSS WWAN

Dell DW5821e T77W968 is a data card solution that delivers wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA/DC-HSPA ) and GPS/Glonass/Beidou protocols in one hardware configuration. It supports LTE Bands as below:

- LB: B26(5/18/19)/8/12(17)/13/14/20/28/29;
- MB: B1/2(25)/3/4(66)/32;
- HB: 7/30/38/39/40/41/42/43/48;
- LAA:B46(DL only)
- WCDMA Bands: 1/2/4/5(6/19)/8/9

Dell DW5821e-T77W968 Specifications and Key features:

* Product Type: 3G, 4G and 5G WWAN Card

* Network Technology: LTE & WCDMA

* FOXCONN PN: T77W968

* Part number: it depends

* Condition: NEW

* LTE Category: Cat 16

* Chipset: Qualcomm Snapdragon X20 LTE Modem

* Form factor: M.2

* 5xDL CA (Up to 100MHz, 256QAM)

* 2xUL CA (Up to 40MHz 64QAM)

* MIMO: 4 x 4(band plan: B1/2/3/4/7/30/40/41/66), 4 x 2, 2 x 2

* UE-Category UL 13 (UL: 150Mbps) + UE-Category DL 16 (DL: 1.0Gbps) @2X2
